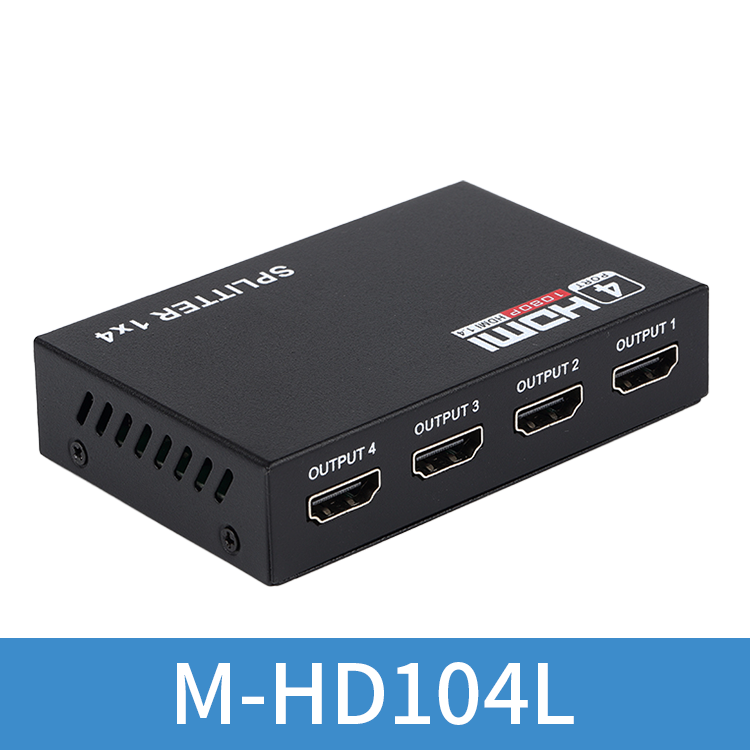

1080P 1×4 HD分配器
【M-HD104L】

*HDMI分辨率最高可达1080P@60Hz；
*最大传输速率3.4G，最大带宽340Mhz；
*支持8/10/12位色彩深度；
*支持HDMI1.4b；
*支持双通道全高清3D；
*输入口最长可接入8米标准AWG26 HDMI线，输出口最长可连接8米标准AWG26 HDMI线；
*可以显示DVD播放器、A/V功放接收机、机顶盒的单一或多个高分辨率信号源；
*使用5V/1A电源适配器；

产品详细信息：

Introduction

The HDMI Splitter 1x4 uses a single HDMI source,accessing to multiple HDMI sinks. The splitter allows one HDMI device to be split easily to two HDMI compatible monitors or projectors. The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The HDMI Resolution up to 3840x2160/30Hz.

Features

1.Support HDMI 1.4b
2. Support Full 3D
3. Support HDMI resolution up to 3840×2160/30Hz
4. Support the max baud rate of 3.4G and max bandwidth of 340Mhz
5.Support deep color 8/10/12bit
6. Support input up to 8 meters AWG26 HDMI standard cable length, output up to 8 meters AWG26 HDMI standard cable length
7.Displaying single source, multi-output high-definition signal source from DVD player A/V receiver, set-top box
9.5V power adapter

Specifications

HDMI version	HDMI 1.4b
HDMI resolution	UP TO 3840x2160/30Hz
Support video color format	8/10/12bit deep color
Support audio format	DTS -HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Max bandwidth	340MHz
Max baud rate	3.4Gbps
Input cable distance	=8mAWG26 HDMI standard cable
Output cable distance	E8mAWG28HDMl standard cable
HDMI input	4HDM
HDMI output	4HDMI
Max working current	1000mA
Specifications of power adapter	Input.AC(50Hz,60Hz)100V-240V;output: DC5V
Operating Temperature range	-15to+55°C)
Operating Humidity range	5 to 90%RH(No Condensation)
Dimension(LxWxH)	105x50x20mm
Weight	120g

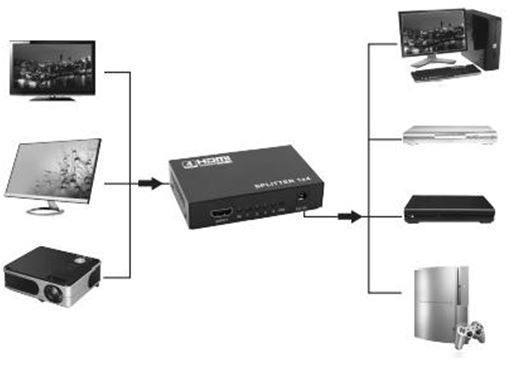

Connecting Operation

1.Connect 1 HDMI cable from HDMI source devices into HDMI Splitter input.
2.Connect 2 HDMI cables from displayers (monitors or projectors)into the HDMI Splitter outputs.
3.Connect 5Vpower supply to the HDMI 1x4 Splitter.

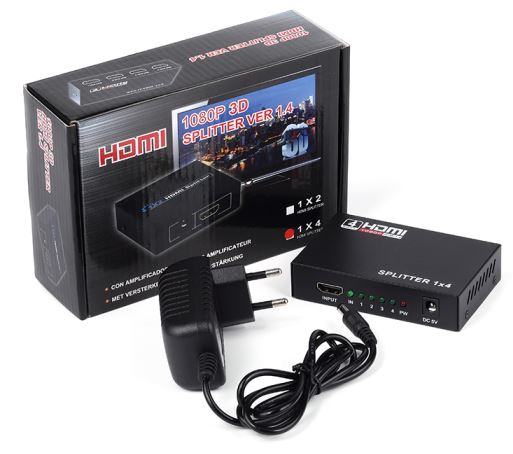

Package Accessories

1.HDMI Splitter 1x4
2 Power Adapter
3 User Manual
